PHỚT LÀM KÍN CỦA EAGLE BURGMANN

PHỚT LÀM KÍN CHO CÁC MÁY BƠM

Công ty Âu Châu là nhà phân phối của hãng Eagle Burgmann.

Website: www.eutc.com.vn

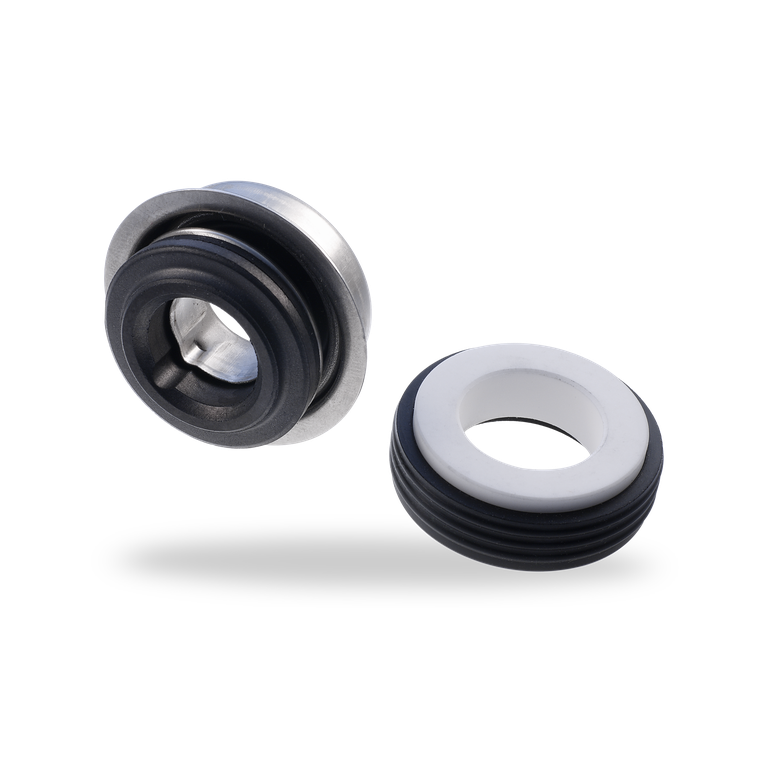

AX5

• Unbalanced
• Independent on direction of rotation

AX25

• External configuration
• Balanced
• Independent of direction of rotation
• Independent of pressure direction

AX25D

• Dual seal
• Balanced
• Independent of direction of rotation
• Independent of pressure direction

AX30

• Unbalanced
• Dependent on direction of rotation
• Solid seats

AX40K

• Stationary springs
• Balanced
• Independent of direction of rotation
• Independent of pressure direction

BT-A2

• Unbalanced
• Single spring
• Independent of direction of rotation
• Elastomer bellows

BT-AR

• Single and dual seal
• Short axial installation length
• Protection of the shaft along the whole length of the seal
• Material approvals available

BT-PN

• Single and dual seals
• Short axial installation length
• Material approvals available

Cartex
Dual seals

• Dual seal
• Cartridge
• Balanced
• Independent of direction of rotation
• Double pressure balanced
• Integrated pumping device
• Variants available: for eccentric screw pumps (-Vario) and gas-lubricated version (-GSDN)

Cartex
Single seals

• Single seal
• Cartridge
• Balanced
• Independent of direction of rotation
• Single seals without connections (-SNO), with flush (-SN) and with quench combined with lip seal (-QN) or throttle ring (-TN)
• Additional variants available for ANSI pumps (e.g. -ABPN) and eccentric screw pumps (-Vario)

Cartex ANSI
Single seals

• Single seal
• Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers
• Cartridge
• Balanced
• Independent of direction of rotation
• Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or throttle ring (-ASTN, -ABTN)

Cartex ANSI
Dual seals

• Dual seal
• Available for standard (Cartex-ASDN) and big bore (Cartex-ABDN) seal chambers
• Cartridge
• Balanced
• Independent of direction of rotation
• Double pressure balanced
• Integrated pumping device

Cartex-GSDN

• Stationary springs
• Rotating seat
• Double seal
• Balanced
• Cartridge unit
• Standard version with V-grooves,
  U-grooves optional (independent of direction of rotation)
• Gas-lubricated, gas-buffered
• Does not open in the event of buffer pressure failure, self closing at pressure reversal

CGSH-K

• For stepped shafts
• Balanced
• Rotating spring
• Single or double seal available
• Standard version with U-grooves, V-grooves optional (dependent of direction of rotation)
• Gas-lubricated
• Does not open in the event of buffer pressure failure, self closing at pressure reversal

DF-SA DiamondFace

• Cartridge design
• Single seal
• Balanced
• Integrated pumping device
• Stationary spring loaded unit
• Inserted seal ring
• Rotating mating ring
  (DiamondFace coated)

EA100

• Single seal
• In-house manufactured carbon seal faces
• Three different impeller connections available

EA560

• Single seal
• Loosely inserted seal face provides self-adjusting capability
• In-house manufactured sliding parts

eCartex
Single seals

• Single seal
• Cartridge
• Balanced
• Independent of direction of rotation
• Single seals without connections (-SNO), with flush (-SN) and with quench combined with lip seal (-QN) or throttle ring (-TN)
• Additional variants available for ANSI pumps (e.g. -ABPN) and eccentric screw pumps (-Vario)

eCartex ANSI
Single seals

• Single seal
• Available for standard (eCartex-ASPN) and big bore (eCartex-ABPN) seal chambers
• Cartridge
• Balanced
• Independent of direction of rotation
• Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or throttle ring (-ASTN, -ABTN)

eCartex ANSI Dual seals

• Dual seal
• Available for standard (eCartex-ASDN) and big bore (eCartex-ABDN) seal chambers
• Cartridge
• Balanced
• Independent of direction of rotation
• Double pressure balanced
• Integrated pumping device

eCartex Dual seals

• Dual seal
• Cartridge
• Balanced
• Independent of direction of rotation
• Double pressure balanced
• Integrated pumping device
• Variants available: for eccentric screw pumps (-Vario) and gas-lubricated version (-GSDN)

ED560

• Dual seal
• Good chemical resistance and ability to handle solids
• In-house manufactured sliding parts

EH700

• Single seal
• Stationary spring-loaded unit enables operation in high-range loads area
• Balanced
• In-house manufactured carbon seal faces

EK700

• Single seal
• Balanced
• Independent of direction of rotation
• Stationary multiple springs

EM300

• Balanced
• Independent of direction of rotation
• Stationary multiple springs
• API682 arrangement 2 containment seal

GSO-DN

• Seat rotating
• Stationary springs
• Double seal
• Balanced
• Standard version with V-grooves, U-grooves optional (independent of direction of rotation)
• Gas-lubricated

H3B

• Single Seal
• Balanced
• Independent of direction of rotation

H7N

• For stepped shafts
• Single seal
• Balanced
• Super-Sinus-spring or multiple springs rotating
• Independent of direction of rotation
• Integrated pumping device available (H7F, H75F)
• Variant with seat cooling available (H75G115)

H10 / H8

• Single seal
• Balanced
• Independent of direction of rotation
• Stationary multiple springs

H12N

• For stepped shafts
• Single seal
• Balanced
• Dependent of direction of rotation
• Torque transmission via conical spring

H74-D

• For stepped shafts
• Dual seal
• Balanced
• Rotating multiple springs
• Independent of direction of rotation
• Seal concept based on the H7 range
• Variant with pumping screw available (H74F-D)

H75VK

• Dual seal
• Cartridge unit
• Design acc. to API 682 / ISO 21049
• Category 2 and 3, Type A, Arrangement 2 or 3
• Bi-directional design available
• Rotating multiple springs
• Integrated pumping device available
• Suitable for pressure reversals

H75VN

• Single seal
• Cartridge unit
• Design acc. to API 682 / ISO 21049
• Category 2 and 3, Type A, Arrangement 1
• Independent of direction of rotation
• Rotating multiple springs
• Integrated pumping device available (H75VP)

HA211

• Single seal
• Unbalanced
• Independent of direction of rotation
• Positive torque transmission due to bayonet drive between seal head and drive collar
• O-Ring groove for ventilation prevents solids build-up and enhances flexibility

HGH201

• For plain shafts (HGH201)
• Semi split single seal
• Multiple springs rotating
• Balanced
• Independent of direction of rotation
• Unsplit as original equipment (HGH200)
• Cartridge available (based on HGH210)
• Variant for stepped shafts available (HGH211)
• Splitted seal parts: sliding faces and O-Rings

HJ92N

• For unstepped shafts
• Single seal
• Balanced
• Independent of direction of rotation
• Encapsulated rotating spring

HR

• Single seal
• Balanced
• Independent of direction of rotation
• Multiple springs stationary
• Seat rotating
• Seat arranged directly behind the impeller
• Spring protection sleeve
• Variant with cylindrical spring and acc. EN 12756 (HRZ1) available
• Variant as cartridge with/without guide sleeve for application with/without quench (HR2, HR3)
• Dual seal as cartridge unit (HRKS-D) available

HRC...N

• Cartridge
• Balanced
• Independent of direction of rotation
• Stationary multiple springs
• Spring protection sleeve
• Variant for operation with pressureless quench available (HRC2000N)
• Dual seal with and without pumping screw (HRC3000NF, HRC3000N) available

HRGS-D

• Double seal
• Balanced
• Standard version with U-grooves (bi-directional)
• Gas-lubricated

HRN

• Single seal
• Balanced
• Independent of direction of rotation
• Stationary springs
• Dual seals in tandem as well as back-to-back arrangements (also in combination with H10 seal)

LB500

• Single seal
• Balanced
• Independent of direction of rotation
• Rotating multiple springs

LP-D

• Integrated seal for Sulzer A pumps
• Dual seal, balanced
• Semi cartridge unit
• Independent of direction of rotation
• Double pressure balanced
• Internal barrier fluid circulation
• Static springs on both sides
• No dynamic O-Ring on shaft
• Rugged design
• Shrink-fitted seal faces
• Seal faces have a large clearance to the shaft
• Wear part cost minimized
• Optimized design for Non-Flow use

LP-S

• Integrated seal for Sulzer A pumps
• Single + Plan 11 flush
• Semi cartridge unit
• Balanced
• Independent of direction of rotation
• Static springs
• No dynamic O-Ring on shaft
• Rugged design
• Shrink-fitted seal faces
• Seal faces have a large clearance to the shaft
• Wear part cost minimized

M2N

• For plain shafts
• Single seal
• Unbalanced
• Conical spring rotating
• Dependent on direction of rotation

M3N

• For plain shafts
• Single seal
• Unbalanced
• Rotating conical spring
• Dependent on direction of rotation

M7N

• For plain shafts
• Single seal
• Unbalanced
• Super-Sinus-spring or multiple springs rotating
• Independent of direction of rotation
• Variant with PTFE secondary seals for high chemical resistance (M78N)

M74-D

• For plain shafts
• Dual seal
• Unbalanced
• Rotating multiple springs
• Independent of direction of rotation
• Seal concept based on the M7 range
• Variant with pumping screw available (M74F-D)

MA290 / MA390

• Cartridge
• Balanced
• Independent of direction of rotation
• Stationary multiple springs
• Springs and pin located on the atmospheric side

MBS100

• For unstepped shafts
• Rotating bellows
• Single Seal
• Balanced
• Independent of direction of rotation

MF95N

• For unstepped shafts
• Rotating bellows
• Single Seal
• Balanced
• Independent of direction of rotation
• Roller bellows

MFL65

• Stationary bellows
• Single Seal
• Balanced
• Independent of direction of rotation

MFL85N

• For unstepped shafts
• Single seal
• Balanced
• Independent of direction of rotation
• Metal bellows rotating

MFLCT

• For unstepped shafts
• Single seal
• Balanced
• Independent of direction of rotation
• Metal bellows rotating

MFLWT

• For unstepped shafts
• Single Seal
• Balanced
• Independent of direction of rotation
• Metal bellows rotating

MG1

• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Unbalanced
• Independent of direction of rotation
• No torsion on bellows

MG9

• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Unbalanced
• Independent of direction of rotation
• No torsion on bellows and spring
• Conical or cylindrical spring
• Metric and inch sizes available
• Special seat dimensions available
• US Patent No. 6.220.601

Mtex Dual seals

• Double seal
• Mtex-DN: API Plan 52 (53/54)
• Mtex9-DN: API Plan 53/54
• Cartridge
• Balanced
• Independent of direction of rotation
• Metal bellows
• Stationary Springs
• Pumping device independent of direction of rotation

Mtex Single seals

• Single seal
• Cartridge
• Balanced
• Independent of direction of rotation
• Metal bellows
• Single seal with quench and lip seal (-QN) or throttle ring (-TN)
• Version available with multipoint injection ring (-QNM, -TNM)
• Supply connections for flush (A) and quench (B)

Pulace

• Single seal
• Balanced
• Independent of direction of rotation
• Stationary multiple springs
• Springs and pins not in contact with the medium

SAF(V) / SAP(V)

• Cartridge design
• Single seal
• Balanced
• Dependent on direction of rotation
• Integrated pumping device
• Stationary spring loaded unit
• Inserted seal face
• Rotating carbon seat

SH(V)

• Cartridge design
• Single seal
• Balanced
• Multiple springs
• Stationary spring loaded unit
• Shrink-fitted seal face

SHF / SHP

• Cartridge design
• Single seal
• Balanced
• Multiple springs
• Dependent of direction of rotation
• Integrated pumping device
• Stationary spring loaded unit
• Shrink-fitted seal face

SHF(V)-D / SHP(V)-D

• Cartridge design
• Dual seal
• Balanced
• Integrated pumping device
• Stationary spring loaded unit
• Multiple springs arrangement
• Shrink-fitted seal face
• One rugged seat

SHPV / SHFV

• Cartridge design
• Single seal
• Balanced
• Dependent of direction of rotation
• Integrated pumping device
• Stationary spring loaded unit
• Multiple springs
• Shrink-fitted seal face

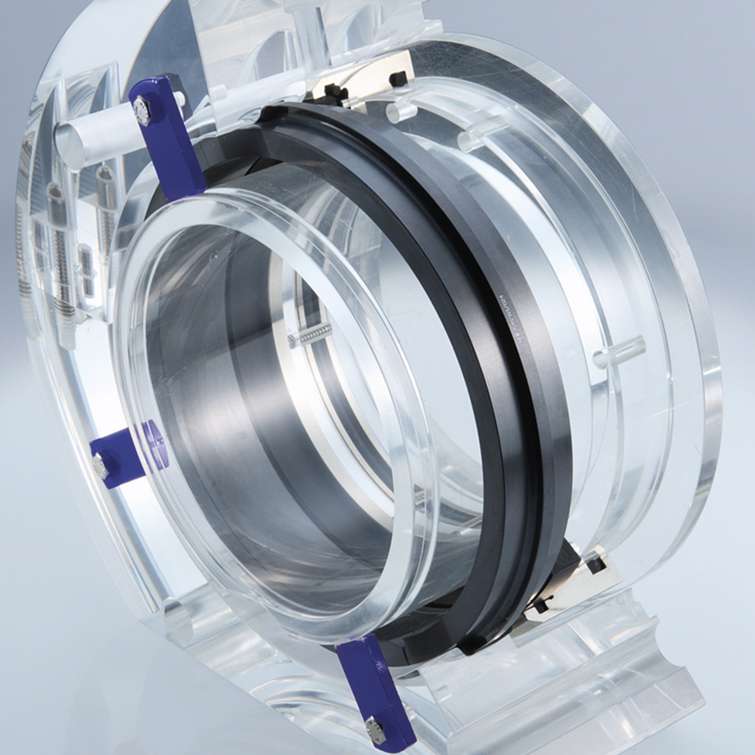

Splitex

• Fully split single seal, 2 x 2 segments, pre-assembled
• Semi-cartridge
• Balanced
• Stationary springs
• Bi-directional
• External pressurization
• Built-in flushing connections
• Installation and wear control

Unitex

• Single cartridge seal
• Elastomer bellows
• Unbalanced
• Independent of direction of rotation
• Rotating spring
• Bellows and spring free from torsion
• Metric and inch sizes available

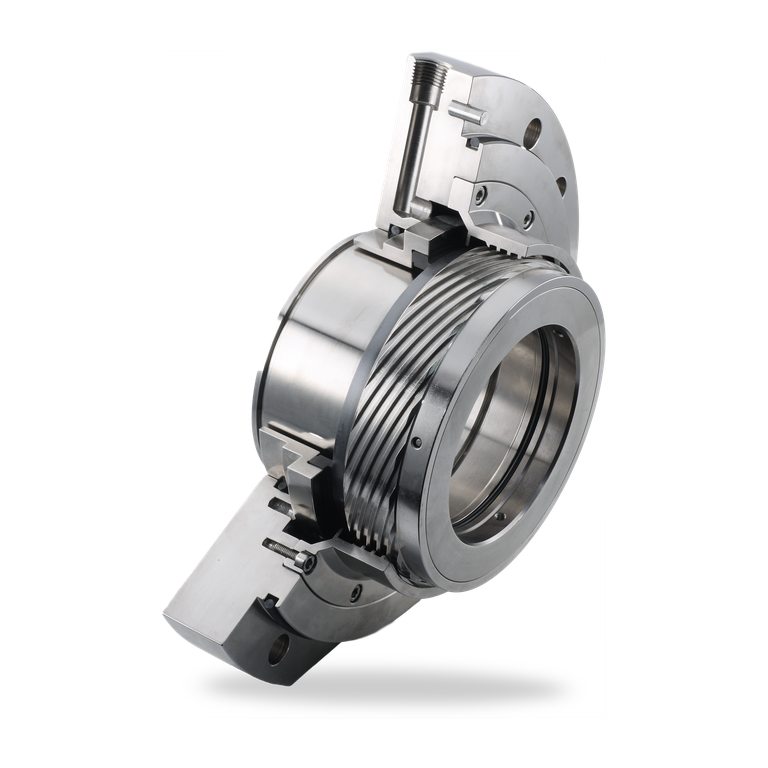

YE400

• Single seal
• Balanced
• Independent of direction of rotation
• Stationary metal bellows
